| Features: | Italy Riello Burner With Generator Which Have Heating Efficiency.Optional :full Cycle Thermal Oil Heating Mode. | Product Name: | Asphalt Distributor Truck |
|---|---|---|---|
| Materials: | Stainless Steel Aluminum Tank | Emission Standardruck: | Euro 2 Euro 3 Euro 4 Euro 5 For Optional |
| Truck Drive Wheel: | 4x2 4x4 6x2 6x4 6x6 8x4 8x6 | Driving Type: | Right Hadn Drive, Left Hand Drive |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Truck Brand: | Dongfeng FAW Foton Sinotruk JAC |
| Highlight: | bitumen distributor truck,asphalt sprayer truck |
||

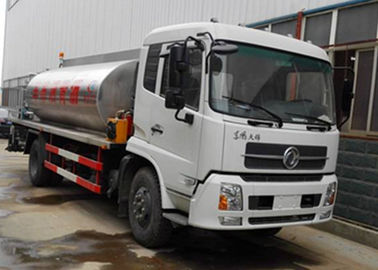

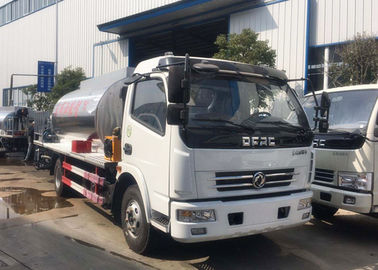

Smart 4x2 10 Ton Asphalt Distribution Truck Bitumen Spraying Truck Asphalt Patching Truck
Dongfeng 4X2 8~10Ton Asphalt Patch Truck Asphalt Spraying Truck With Asphalt Pump Hydraulic pump,Equipped with Asphalt tank,Asphalt pump,Hydraulic drive motor,Hydraulic pump,Hydraulic system,Spraying system,Heating system,Burner,Heat conduction oil pump,Pneumatic circuit,Auto control system and Operation panel etc.
Specification:
|
Product name
|
Smart 10 Ton Asphalt Distribution Truck,Bitumen Spraying Truck,Asphalt Sprinkler
|
||
|
Tank volume
|
8~10T
|
Chassis model
|
DFL1160BX5
|
|
Overall dimension(mm)
|
8790×2480×2840
|
Brand name
|
Dongfeng
|
|
Gross weight(Kg)
|
16000
|
Wheelbase(mm)
|
4700
|
|
Payload(Kg)
|
9400
|
Drive type
|
4*2
|
|
Curb weight(Kg)
|
6405
|
Fuel type
|
diesel
|
|
Axle No.
|
2
|
Emission standard
|
Euro 2/Euro 3/Euro 4
|
|
Cab seats(person)
|
3
|
Transmission
|
6-speed
|
|
Approach/departure angle(°)
|
20/10
|
Tires No.
|
6
|
|
xle load (Kg)
|
6000/10000
|
Tire specification
|
9.00-20
|
|
Front/rear hang(mm)
|
1430/2660
|
Max speed(km/h)
|
80,90
|
|
Front/Rear track(mm)
|
1880/1860
|
Steel spring number
|
8/10+8
|
|
Engine parameters
|
|||
|
Engine model
|
Engine manufacturer
|
Displacement (ml)
|
power(kw)
|
|
ISB180 40
|
Dongfeng cummins engine co ., LTD
|
5900
|
132
|
|
Chassis Description
|
1.Dongfeng Tianjin 4x2 chassis, white row and half cabin with A/C, left/right hand drive optional.
2. 4.7m wheelbase,180HP cummins engine, six speed gear box, front brige 4.5T/ rear brige 9T, 9.00-20 tire.
3.ABS, Power steering.
|
||
|
Standard Equipment
|
1.Tank valume:8~10T; ellipse asphalt tanker with 50mm thickness insulating layer.
2.Equipped with Asphalt tank,Asphalt pump,Hydraulic drive motor,Hydraulic pump,Hydraulic system,Spraying system,Heating system,Burner,Heat conduction oil pump,Pneumatic circuit,Auto control system and Operation panel etc..
|
||
|
Optional Equipment
|
We can make the asphalt distribution truck according to customer's requests with the optional equipments below:
1. Standard Configuration:
2.Intelligent configuration (domestic)①. Asphalt pump model: QGB950 (high viscosity asphalt pump, 950L/minute); ②. Asphalt pump hydraulic drive motor model 05-110 - BD31; ③. Hydraulic pump model: CBQ563 - L; ④. hydraulic system adopts Shanxi Yuci; Control mode: manual control one-control-two; ⑤. Sprinkle width 4.5-6m; 48 asphalt intelligent nozzle; ⑥. Heating method: heat conduction oil automatic temperature; ⑦. Burner: Italian imported G20; ⑧. Heat conduction oil pump: 40-25-160 (domestic) ①. Asphalt pump model: QGB950 (high viscosity asphalt pump); ②. Asphalt pump hydraulic drive motor model 05-130 - BD31; Hydraulic pump: CBQ563 -l; Hydraulic system: proportional valve (Taiwan EFBG - 03-160 - HF); Hydraulic system: Shanxi Yuci(reversing valve and relief valve); Radiator: Nison brand. ③. Control mode: control system (German Siemens CLW-48-01), Computer intellectual control, 1 control 1; ④. Sprinkle width 4.5-6m; 30~39 pcs asphalt intelligent nozzle; ⑤. Heating method: heat conduction oil automatic temperature; Burner: G20 (Italy). Heat conduction oil pump adopts HeBei domestic, ⑥. Gasoline engine: 5.5 kw.
3.Intelligent configuration (import)
①. Asphalt pump: Belgian TGGP - 185-125;
②. Asphalt pump hydraulic drive motor model 05-90-BD31; Hydraulic pump: Germany rexroth;
Hydraulic system:Taiwan proportional valve;
Hydraulic system: Shanxi Yuci (reversing valve and relief valve);
Radiator:Nison brand.
③. Control mode: control system (German Siemens CLW-48-01);
computer intellectual control, 1 control 1;
④. Sprinkle width 4.5-6m; 30-39 pcs intelligent asphalt nozzle; ⑤. Hheating method:heat conduction oil automatic temperature; Burner: G10 (Italy).
Heat conduction oil pump: HeBei domestic;
⑥. Gasoline engine: Honda 5.5 kw. Please advise us in advance if you have any special requests for the asphalt distribution truck, we can equip various kinds optional equipments for you.
|
||
|
Purposes
|
Asphalt Distribution Truck is a kind of pavement construction machinery, it is the main equipment of highway, city roads, airports and ports construction.
Our Intellectualized Asphalt Distribution Truck is used for spraying asphalt on the prime coat, the water-proof layer and tack coat in high-graded road construction.It also can be used for bituminous pavement with the construction techniques of spreading in layers. It can spray hot asphalt, emulsified asphalt, modified asphalt and etc. |
||
|
Product advantage
|
1. A person can be done indoors of Intelligent Asphalt Distribution Truck, operation is simple, you only need set up distributing parameter on the control panel,and then you can begin the work.
2. Best Quality with competitive price.
|
||
Service:
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you. With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
